384 - breather piping (FR unit)(unit) for Nissan Vanette Serena KBNC23

	Frame / Series KBNC23 / C23 body W (wagon ) engine SR20DE (2000 gasoline twincam ) drive 4WD (four-wheel drive ) Manufacture period 05.1994 - 01.1997 grade RV/S (RV select ) transmission MT (manual transmission )

---

Applies for models	Manufacture period	Spec
4WD.SR20DE.MT +4WD.CD20T.MT	08.1993 - 05.1994	フロント ファイナル ドライブ
4WD.SR20DE.MT +4WD.CD20T.MT	05.1994 - 08.1995	フロント ファイナル ドライブ

Open full screen picture Up to the top

31098+B - hose, breather 31098FB - connector, breather hose 31098UC - clamp, breather hose

---

Applies for models	Manufacture period	Spec
4WD.SR20DE.MT +4WD.CD20T.MT	08.1993 - 05.1994	リヤ
4WD.SR20DE.MT +4WD.CD20T.MT	05.1994 - 08.1995	リヤ

Open full screen picture Up to the top

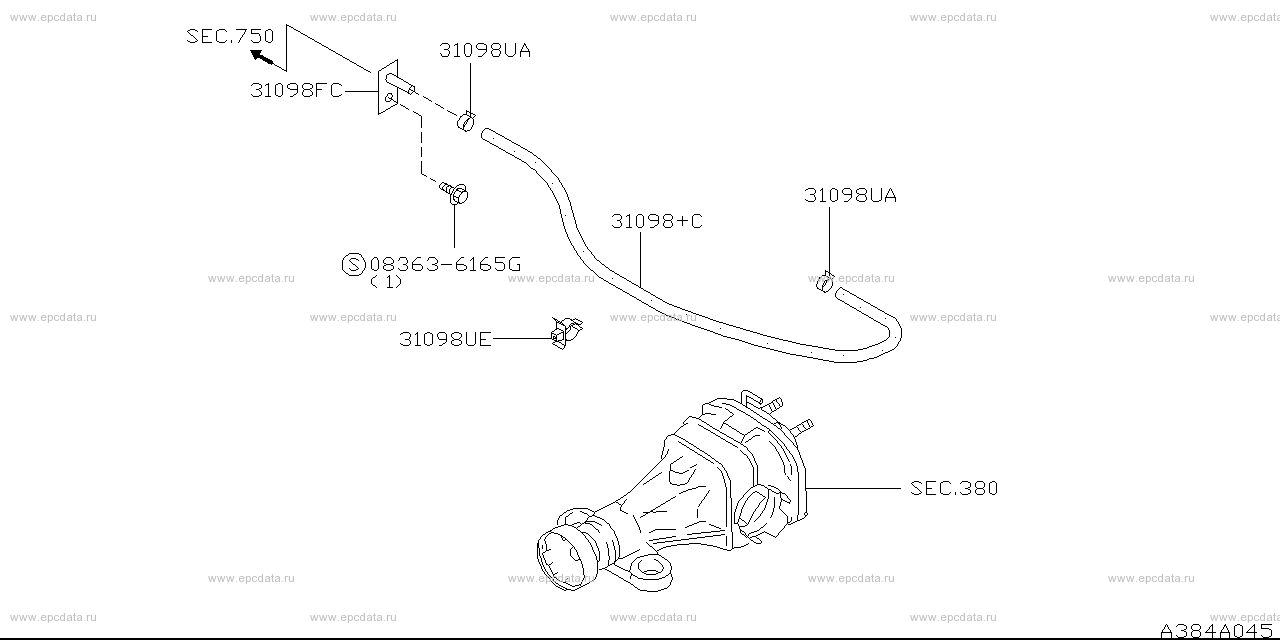

083636165G 31098+C - hose, breather 31098FC - connector, breather hose 31098UA - clamp, breather hose 31098UE - clamp, breather hose

---

Applies for models	Manufacture period	Spec
4WD.SR20DE.MT +4WD.CD20T.MT	08.1993 - 05.1994	フロント
4WD.SR20DE.MT +4WD.CD20T.MT	05.1994 - 08.1995	フロント

Open full screen picture Up to the top

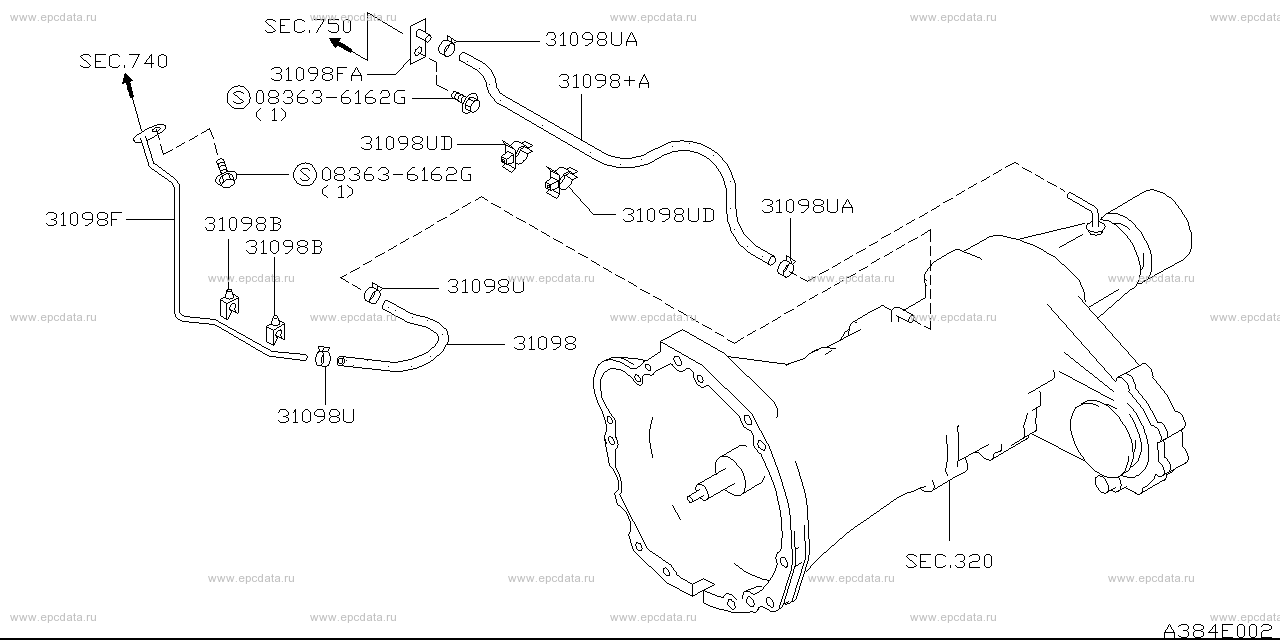

083636165G 31098 - hose, breather 31098+A - hose, breather 31098B - clip, breather hose 31098F - connector, breather hose 31098FA - connector, breather hose 31098U - clamp, breather hose 31098UB - clamp, breather hose 31098UD - clamp, breather hose

---

Applies for models	Manufacture period	Spec
4WD.SR20DE +4WD.CD20T	08.1995 - 01.1997	リヤ

Open full screen picture Up to the top

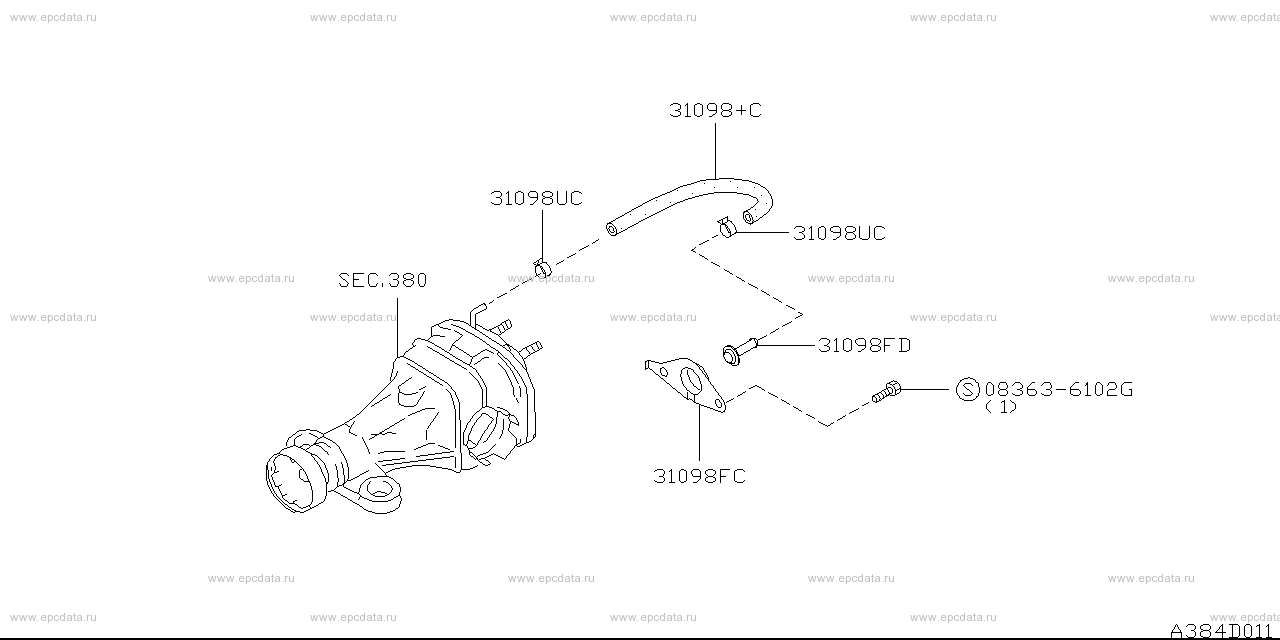

083636102G 31098+C - hose, breather 31098FC - connector, breather hose 31098FD - connector, breather hose 31098UC - clamp, breather hose

---

Applies for models	Manufacture period	Spec
4WD.SR20DE.MT +4WD.CD20T.MT	08.1995 - 01.1997	フロント

Open full screen picture Up to the top

083636162G 31098 - hose, breather 31098+A - hose, breather 31098B - clip, breather hose 31098F - connector, breather hose 31098FA - connector, breather hose 31098U - clamp, breather hose 31098UA - clamp, breather hose 31098UD - clamp, breather hose

---

Applies for models	Manufacture period	Spec
4WD.SR20DE +4WD.CD20T	08.1995 - 01.1997	フロント ファイナル ドライブ

Open full screen picture Up to the top

31098+B - hose, breather 31098FB - connector, breather hose 31098UB - clamp, breather hose

Vanette Serena KBNC23
